Download the firmware into the STM32G431CBT6 chip that is on the bdwidth sensor
There are 2 ways:
¶ Flash with ccd_flash(recommend):
-
Press and Hold on the boot button on the bdwidth sensor
-
Power on the bdwidth sensor with usb cable
-
Release the boot button
-

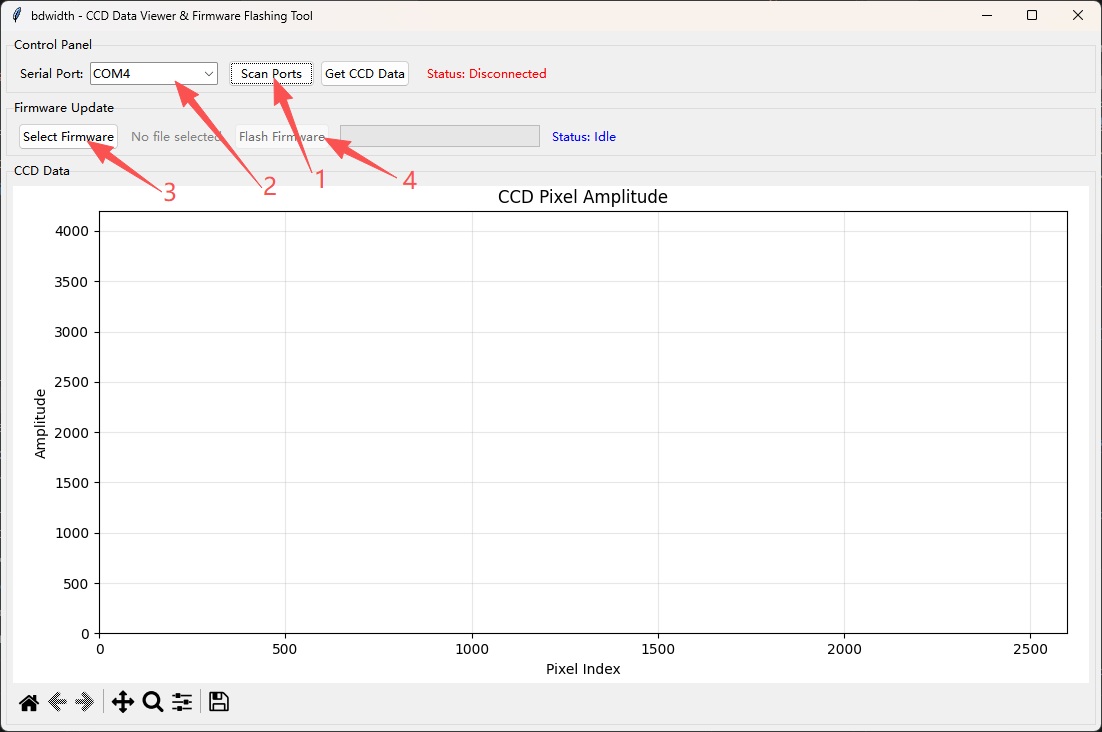

Open the ccd_flash.exe (or ccd_flash.py)
-
Choose the UART port and firmware file like bdwidth20260718.hex Click Flash Firmware
-
Finish
-
Test
To reboot the sensor, simply unplug and plug the USB cable. Then open the ccd_flash.exe tool,choose port and click the ‘Get CCD Data’ button. You will see the plot data from the sensor.
¶ Flash with STM32CubeProgrammer:
-
Press and Hold on the boot button on the bdwidth sensor
-
Power on the bdwidth sensor with usb cable
-
Release the boot button
-
Open the STM32CubeProgrammer.exe
-
Choose the UART port and click connect button in the STM32CubeProgrammer
-
Open the firmware file for example: bdwidth_v1.1.hex --> Click Download
-
Finish
video: https://youtu.be/c74Q1chOo8M
